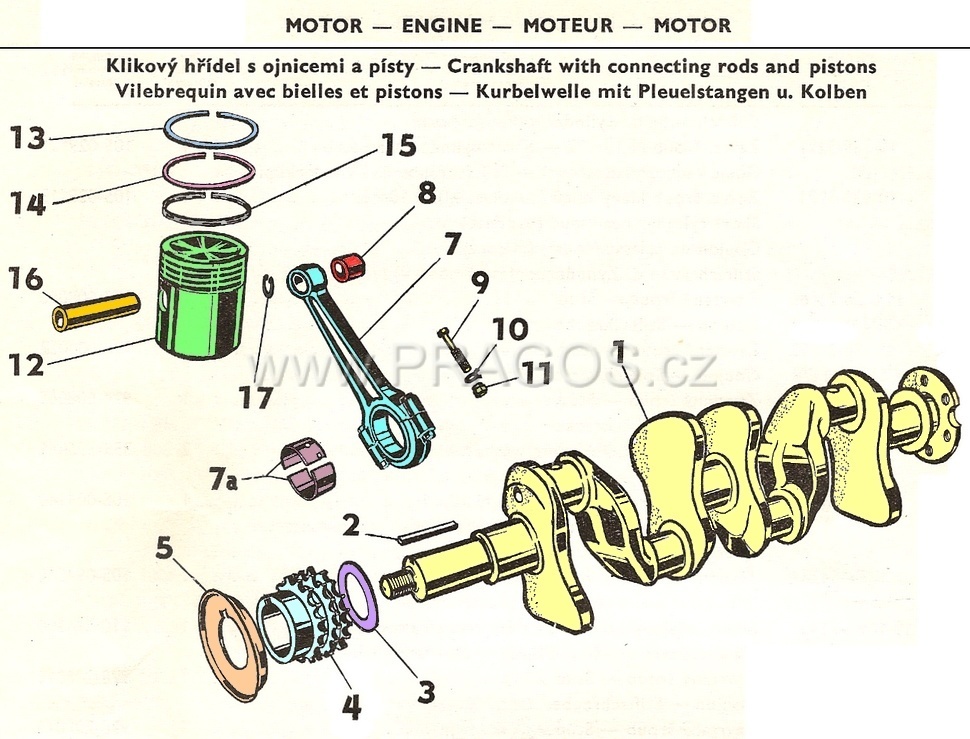

Crankshaft, Pistons

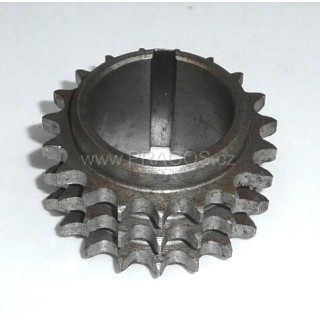

Timing gear TRIPLEX small, for Škoda Spartak, 1203

105010200

Timing gear duplex – small, Škoda 1203 later + TAZ 1500

109010201

already for modern oil filter (not felt)

Connecting rod bearings standard 0.00 (set of 8 pcs), Škoda Spartak, Octavia, Felicia, 1200–2

105010480, 109010485

Quality replacement (1mm narrower) - does not affect function

Connecting rod bearings 0.25 (1st undersize, set of 8 pcs), Škoda Spartak, Octavia, Felicia, 1200–2

105010483, 109010486

Quality replacement (1mm shorter) - does not affect function

Connecting rod bearings 0.50 (2nd undersize, set of 8 pcs), Škoda Spartak, Octavia, Felicia, 1200–2

105010482, 109010487

Quality replacement (1mm shorter) - does not affect function

Connecting rod bearings 0.75 (3rd undersize, set of 8 pcs), Škoda Spartak, Octavia, Felicia, 1200–2

105010481, 109010488

Kvalitní náhrada (šířka o 1mm kraší) - na funkci nemá vliv

Connecting rod bolts, set of 8 pcs Spartak, Octavia, Felicia, 1200–2

105019091

price = set of 8 pieces

Connecting rod bolt lock washer, for Škoda Tudor, Spartak, Octavia, Felicia, 1203

105009670, 105019670

Piston pin Škoda Tudor, MB

908180059

Ø 18 mm, length 60 mm, hollow, vehicle = 4x

Piston pin Škoda Tudor, MB

908200158, 908180162

diameter 18 mm, length 63 mm, hollow, car=4x

Set of bare cylinders 4× 1089 ccm, for Škoda Tudor, Spartak, Octavia

105000305, 1451006

D68, Czech production

Cylinders and pistons, complete set 1089 ccm, Škoda Spartak, Octavia

105000306, 105003111

D68, pin D18mm ATTENTION, during installation the hole in the piston for the piston pin must be slightly reamed, in some cases we do not recommend hammering directly.

Cylinders and pistons, complete set 1221 ccm, Škoda Octavia, 1200–3

109000311, 105000307, 106090201

D72, pin D18mmCzech productionIn some engines the liner does not seat due to a rib in the engine block and it is necessary to lightly grind the rib at the top where the cylinder has a radius.ATTENTION, during installation the...

Cylinders and pistons, complete set 1089 ccm, Škoda Felicia

106090200

D68, pin D18mm, convex piston Czech productionATTENTION, during installation the hole in the piston for the piston pin must be slightly reamed, in some cases we do not recommend hammering directly.

Cylinders and pistons, complete set 1500 ccm, Škoda 1203

109000313

D72, pin D20mmOnly engines TAZ 1500 -776/14Cannot be used on Octavia engines etc.(pin is pressed in piston, no groove)Czech productionATTENTION, during installation the hole in the piston for the piston pin must be slightly...
